Passenger grabhandle (1, fig. 107) Is located inside the tail guard; to take it out, remove the seat (see "removal of the seat" on page 119), pull the knob (2, fig. 107) While taking out the grabhandle (1, fig. 107) From its housing until it is fully extended.

Warning


Before use, pull back and forth to ensure that it is locked in the correct position.

To withdraw it, pull knob (2, fig. 107), Push grabhandle (1, fig.

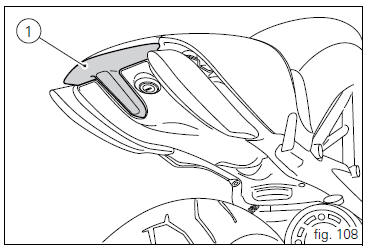

107) In its housing until it is completely flush with the tail guard (fig. 108) And refit the seat (see "refitting the seat" on page 121).

Passenger grabhandle


Passenger grabhandle


Side stand
Important Before lowering the side stand, check that the ground is sufficiently even and firm. Do not park on soft or pebbled ground or on asphalt melted by the sun heat and similar or the motorc ...

Adjusting the front fork
The front fork used on this motorcycle has rebound, compression and spring preload adjustment. The settings are adjusted using external adjuster screws. To adjust rebound damping (fig. 109); ...
