Ducati Diavel Service Manual: Abs disabling function
This function disables or enables the abs.

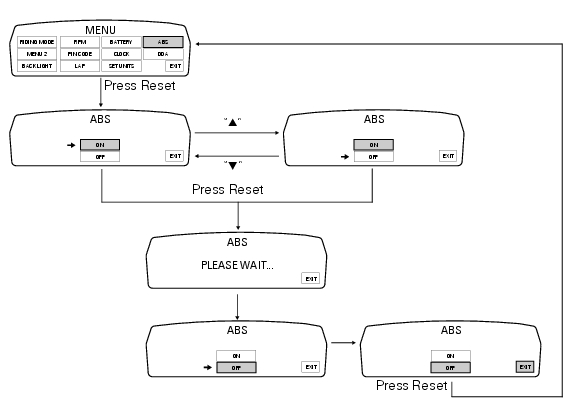

To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" to select the "abs" function and press the reset button (3) to enter the following page.
Function state is highlighted on the display (on in green or off in yellow); use button (1) "s" or (2) "t" to shift the arrow on the left onto the new setting and confirm by pressing the reset button (3) for 3 seconds.
After these 3 seconds the system checks whether the request was actually complied with; during the check the display will show the message "please wait…".
The new condition will be displayed after check time.
Note
If the disabling request was not met, it is recommended to repeat the procedure. If the problem persists, contact your ducati dealer or authorised service centre.
To exit the setting function, press the reset button (3) when "exit" is highlighted.
