Ducati Diavel Service Manual: Air intake

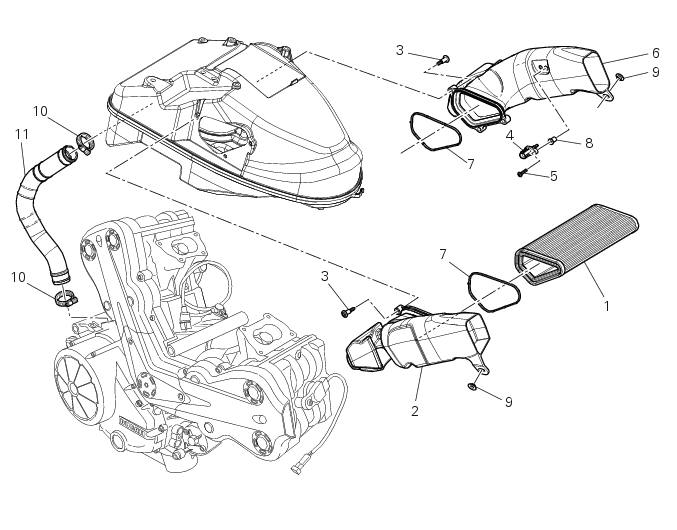

Air intake


  1. Air filter
  2. Right air duct
  3. Screw
  4. Air temperature sensor
  5. Screw
  6. Left air duct
  7. Sealing washer
  8. Threaded insert
  9. Spacer
  10. Clamp
  11. Breather hose

Spare parts catalogue

Diavel abs air intake - oil breather

Diavel carbon abs air intake - oil breather

Important

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.

Refitting the airbox and throttle body
Position the filter box (1). Operate on the vehicle lh side, connect connector (f) of the tps/div motor. Operating on the right side of the vehicle, connect connector (e) from the aps sensor ...

Removal of the air filters
Work on the vehicle right side, loosen screws (3) that secure the intake duct (2) to the airbox, and the radiator retaining screw (a); recover the washer (b). Remove the intake duct (2). ...
