Ducati Diavel Service Manual: Battery voltage indicator (battery)

This function describes the battery voltage indicator.

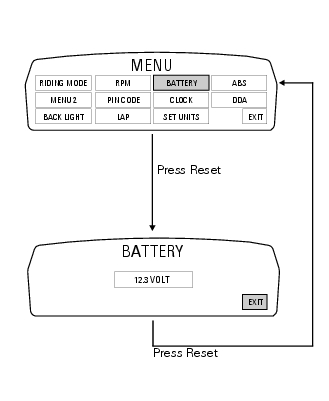

To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "battery" function and press the reset button (3) to confirm.

The information will be displayed as follows: if battery voltage is between 11.8 And 14.9 Volt the reading will be displayed steady; if battery voltage is between 11.0 And 11.7 Volt the reading will be displayed flashing; if battery voltage is between 15.0 And 16.0 Volt the reading will be displayed flashing; if battery voltage is equal to or less than 10.9 Volt, "low" is shown flashing and the "vehicle/engine diagnosis - eobd" light comes on; if battery voltage is equal to or higher than 16.1 Volt, "high" is shown flashing and the "vehicle/engine diagnosis - eobd" light comes on;

Note

Dashes "- - -" appear if the reading is not available.

Battery voltage indicator (battery)


Stored lap erase function
This function erases the stored laps. To access the function it is necessary to view the "setting" menu", using buttons (1) "s" or (2) "t" select the "lap" function and press the reset button (3 ...

Clock setting function
This function sets the clock. To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "clock" function and press the reset button (3) to ...
