Ducati Diavel Service Manual: Belly fairing

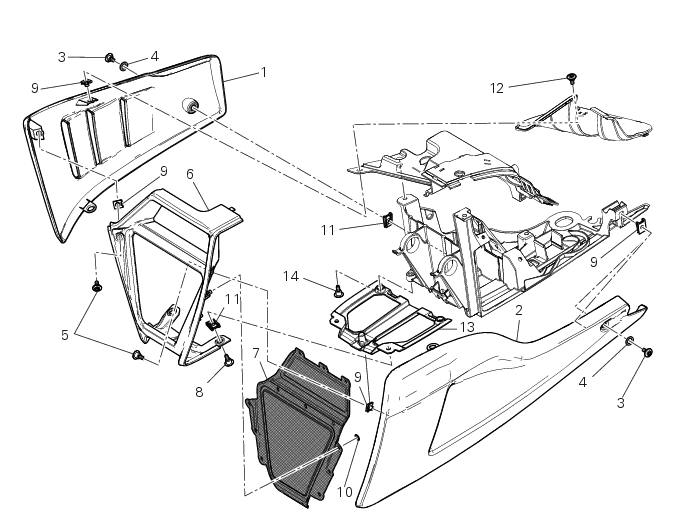

Belly fairing


  1. Rh belly fairing
  2. Lh belly fairing
  3. Special screw
  4. Nylon washer
  5. Screw
  6. Central belly fairing
  7. Oil cooler shield
  8. Special screw
  9. Clip
  10. Washer
  11. Clip
  12. Screw
  13. Bracket
  14. Screw

Spare parts catalogue

Diavel abs belly fairing

Diavel carbon abs belly fairing

Important

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.
