Ducati Diavel Owners Manual: Checking brake pads for wear

Check brake pads wear through the inspection hole in the callipers.

Change both pads if friction material thickness of even just one pad is about 1 mm.

Warning


Friction material wear beyond this limit would lead to metal support contact with the brake disc thus compromising braking efficiency, disc integrity and rider safety.

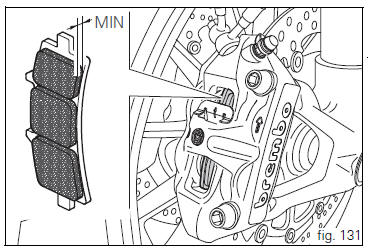

Checking brake pads for wear


Important


Have the brake pads replaced at a ducati dealer or authorised service centre.

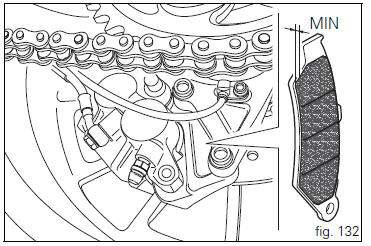

Checking brake pads for wear


Checking brake and clutch fluid level
The levels should not fall below the min marks on the respective reservoirs. If the level is too low, air can get into the circuit, thus impairing the efficiency of the system. Brake and clutc ...

Lubricating cables and joints
Check the outer sheath of the throttle control and cold start lever cables for damage at regular intervals. The outer plastic cover should not be flattened or cracked. Operate the controls to make ...
