Ducati Diavel Owners Manual: Clock
This function shows the time.

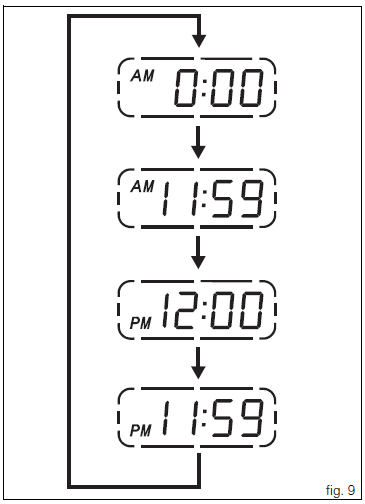

Time is always displayed as follows:
Am from 0:00 to 11:59
Pm from 12:00 to 11:59
If battery power is suddenly cut off (battery off), when battery power is restored and upon next key-on, the clock is reset and restarts operating from "0:00".
Engine rpm indicator (rpm)
This function displays the rpms.
The instrument panel receives the engine rpm information
and displays it.
This information is displayed progressively from the left to
the right, identifying t ...
Coolant temperature
This function indicates coolant indication state.
The temperature unit of measure can be selected (C or f).
The reading is indicated as follows:
If the reading is between - 39C and +39C &quo ...
Other materials:
Reassembly of the tool tray
Place the tool tray unit (23) on the lateral brackets (2) and (3) by
tightening the screws (24) to 14 nm +/- 5% (sect. 3-3,
Frame torque settings).
If the handle guide (32) has been previously removed, position it on the tray
(23) and tighten the screws (34) to 20 nm
+/- 5% (sect. 3-3, Fram ...
Side stand button
Introduction
The side stand button is located on the side stand. Together with the signal
from the clutch button and the neutral signal
generated by the gear sensor (transmitted to the engine control unit over the
can line), the side stand position signal is
used to enable or disable engine s ...
Disassembly of structural components and the frame
Before carrying out dimensional checks on the frame, you must remove all the
superstructures fitted, referring to the
removal procedures outlined in the sections of this manual.
The rear subframes (2) and (3) are structural components of the frame (1).
Both serve to support motorcycle super ...
