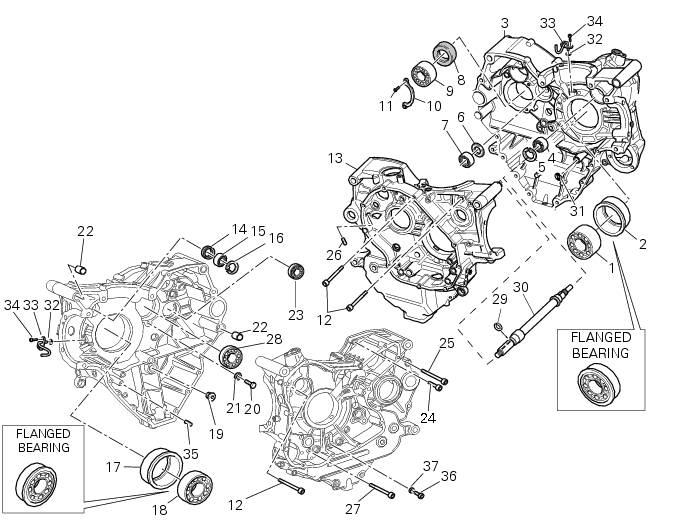

Crankcase halves


  1. Bearing
  2. Bearing holder bushing
  3. Alternator-side crankcase half
  4. Bearing
  5. Circlip
  6. Washer
  7. Bearing
  8. Sealing ring
  9. Bearing
  10. Retaining plate
  11. Screw
  12. Screw
  13. Clutch-side crankcase half
  14. Sealing ring
  15. Bearing
  16. Circlip
  17. Bearing holder bushing
  18. Bearing
  19. Plug
  20. Screw
  21. Spacer
  22. Bush
  23. Bearing
  24. Screw
  25. Screw
  26. Grub screw
  27. Screw
  28. Screw
  29. Circlip
  30. Timing belt driveshaft
  31. O-ring
  32. O-ring
  33. Hose
  34. Screw
  35. Grub screw
  36. Screw
  37. Sealing washer

Spare parts catalogue

Diavel abs timing system

Diavel abs crankcase halves

Diavel abs crankcase halves

Diavel carbon abs timing system

Diavel carbon abs crankcase halves

Diavel carbon abs crankcase halves

Important

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.

Refitting the starter motor gear
Position the washer (20) and the gear (19) in the pin (21) and take the pin into contact with the crankcase half. ...

Separation of the crankcase halves
Use two screwdrivers to remove the circlip (29) from the timing belt driveshaft shaft (30) on the clutch-side crankcase half. Note Take care to avoid scoring the surface of the shaft while re ...
