Ducati Diavel Service Manual: Crankshaft/connecting rods assembly

Ducati Diavel Service Manual / Engine / Crankcase assembly / Crankshaft/connecting rods assembly

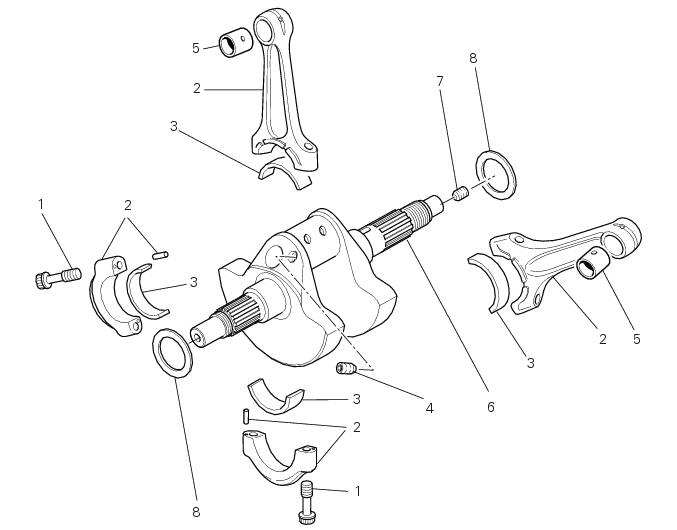

Crankshaft/connecting rods assembly


  1. Special screw
  2. Connecting rod assembly
  3. Half bearing
  4. Grub screw
  5. Bushes
  6. Crankshaft
  7. Grub screw
  8. Shim washer

Spare parts catalogue

Diavel abs connecting rods

Diavel carbon abs connecting rods

Important

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.

Reassembly of the crankcase halves
If removed, apply threadlocker on the screw (36), insert it with the washer (37) on the crankcase half and tighten it to The torque of 8 nm (min. 7 Nm - max. 9 Nm) (sect. 3 - 3, Engine torque sett ...

Removal of the crankshaft/connecting rods assembly
After separating the crankcase halves, withdraw the crankshaft (6) complete with connecting rods (2). ...
