Ducati Diavel Service Manual: Digital rpm indication function

This function displays the number of rpms for improved accuracy when setting idle rpm.

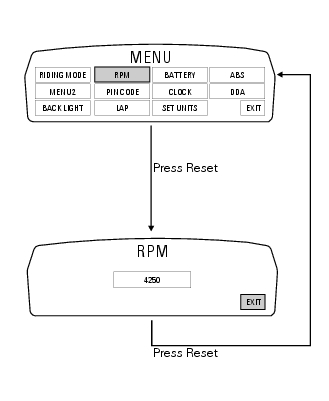

To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "rpm" function and press the reset button (3) to confirm.

The display shows the numerical value of the rpm with a precision of 50 rpm.

To exit the setting function, press the reset button (3) when "exit" is highlighted.

Digital rpm indication function
