Ducati Diavel Owners Manual: Distance travelled on fuel reserve: trip fuel

Ducati Diavel Owners Manual / Instrument panel (dashboard) / Distance travelled on fuel reserve: trip fuel

This function shows the distance travelled on fuel reserve (in km or miles depending on the specific application).

When the fuel light comes on, the display automatically switches to the "trip fuel" indicator.

Trip fuel reading remains stored even after key-off until the vehicle is refuelled.

Count is interrupted automatically as soon as fuel is topped up to above minimum level.

When the reading exceeds 9999.9, It is reset and the count restarts automatically.

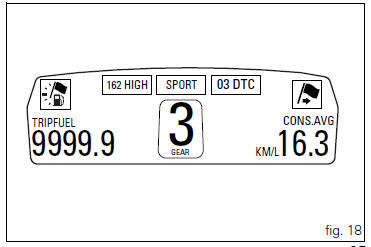

Distance travelled on fuel reserve: trip fuel
