Ducati Diavel Owners Manual: Engine rpm indicator (rpm)

This function displays the rpms.

The instrument panel receives the engine rpm information and displays it.

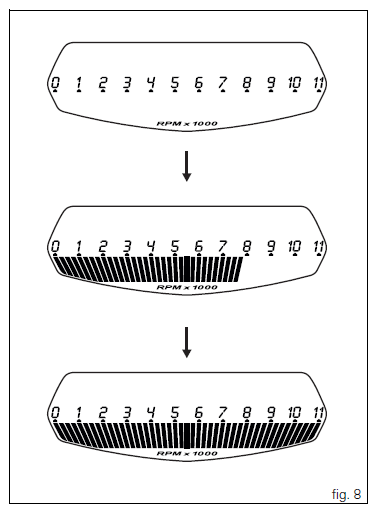

This information is displayed progressively from the left to the right, identifying the rpms.

Engine rpm indicator (rpm)


Vehicle speed indicator
this function displays vehicle speed (km/h or mph depending on the set measurement system). the instrument panel receives information about the actual speed and displays the number increased by 5 ...

Clock
This function shows the time. Time is always displayed as follows: Am from 0:00 to 11:59 Pm from 12:00 to 11:59 If battery power is suddenly cut off (battery off), when battery power is restore ...
