Ducati Diavel Service Manual: Engine torque settings

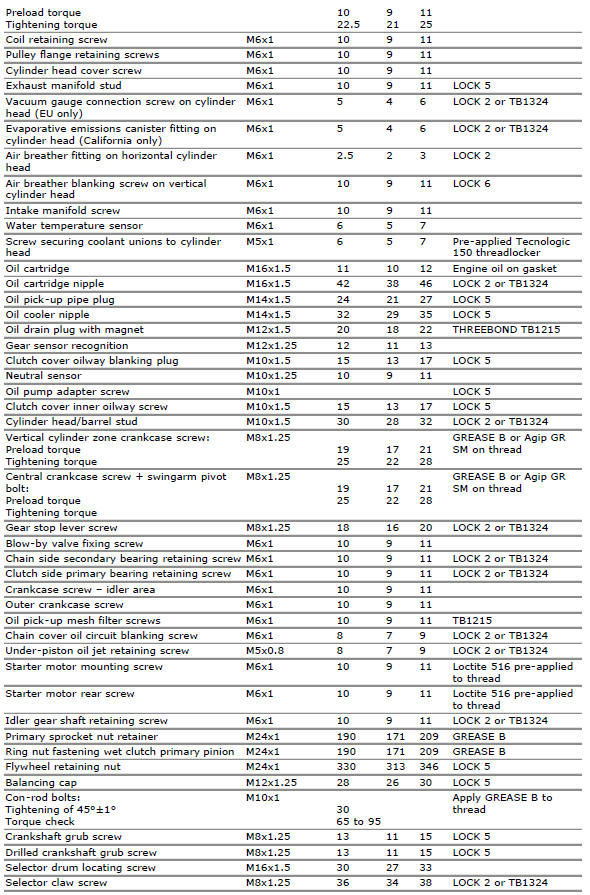

Engine torque settings

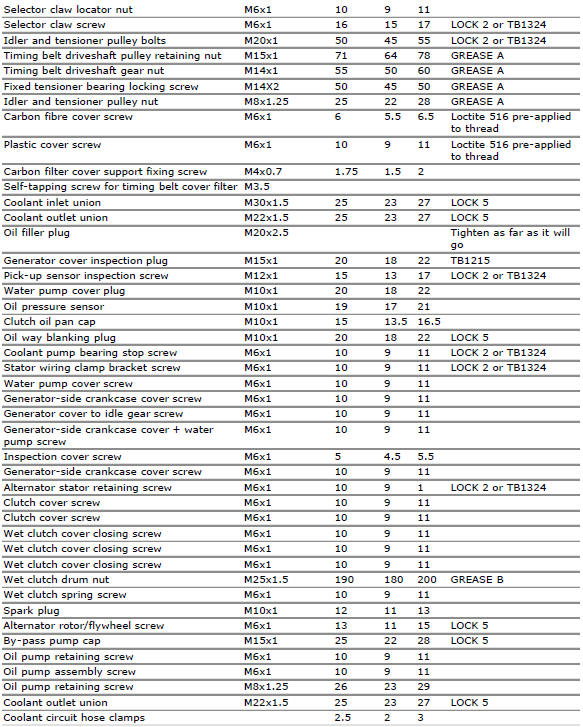

Engine torque settings

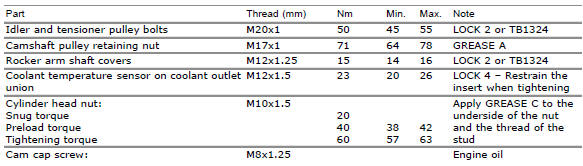

Engine torque settings


*Dynamic safety-critical point; tightening torque must be within nm +/-5%.

Note

For product specifications and symbols, refer to paragraph "product specifications" (sect. 1 - 2).

Frame torque settings
*Dynamic safety-critical point; tightening torque must be within nm +/-5%. Note For product specifications and symbols, refer to "product specifications" (sect. 1 - 2). ...

Service tools
Spare parts catalogue Diavel abs workshop service tools Diavel abs workshop service tools Diavel carbon abs workshop service tools Diavel carbon abs workshop service tools ...

Other materials:

Refitting the swingarm
Apply the recommended threadlocker to the screws (7). Install the lower chain guard (15) on the swingarm (8), fastening it with the screws (7): tighten the screws (7) to a torque of 4 nm +/- 10% (sect. 3 - 3, Frame torque settings). Locate the swingarm (8) on the frame. Lubricate with ...

Refitting the rear footrests
Note The refitting of the rear footrests is described for the right side but it is the same for both. If previously removed, refit the rubber footrest (11) on the rear rh footrest (6), by pushing it until pad (b) engages in the other side. Note The rubber footrest (11) side featuring the le ...

Residual range indication when the service is due
After resetting the first oil service warning (triggered at 1000 km), upon every key-on the system displays the indication of which type of service should be performed next (oil service or desmo service) and the residual range. A (green) warning (1, fig. 32) Is activated for 2 seconds on ever ...
