Ducati Diavel Service Manual: Frame torque settings

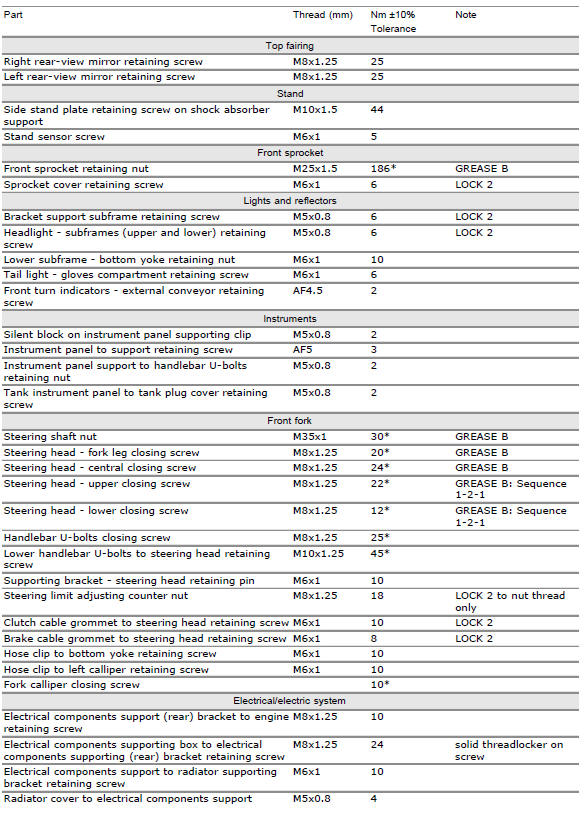

Frame torque settings

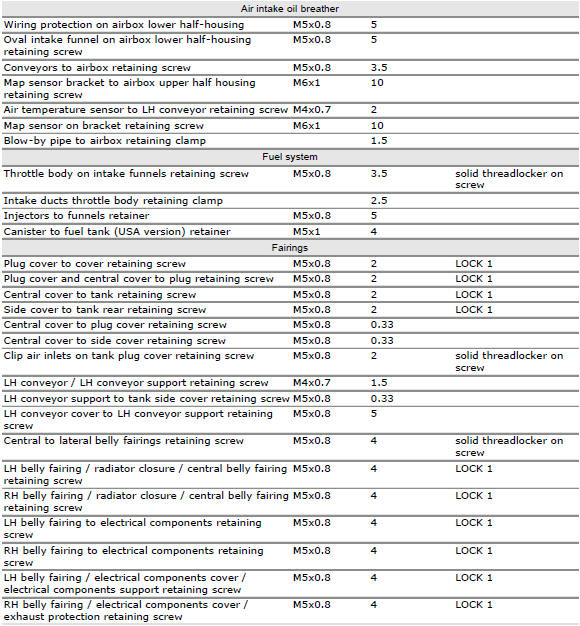

Frame torque settings

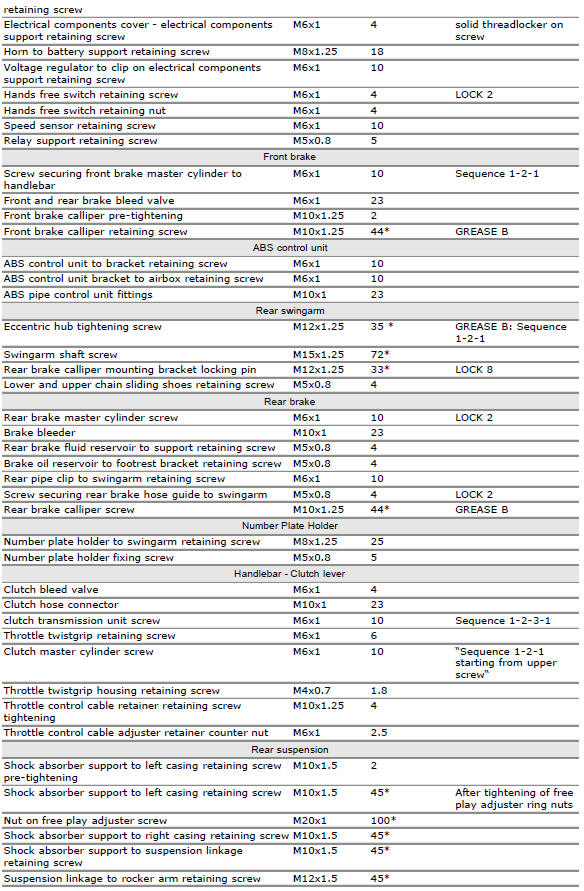

Frame torque settings

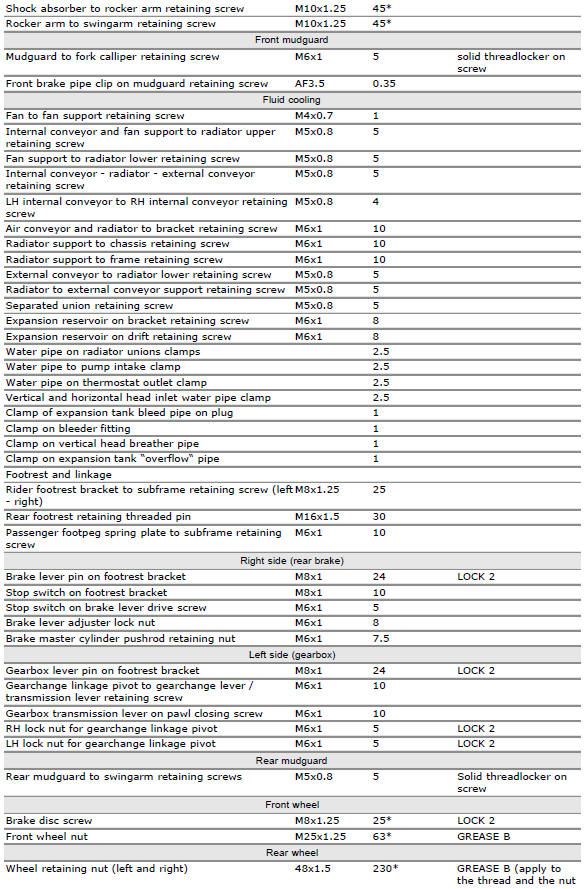

Frame torque settings

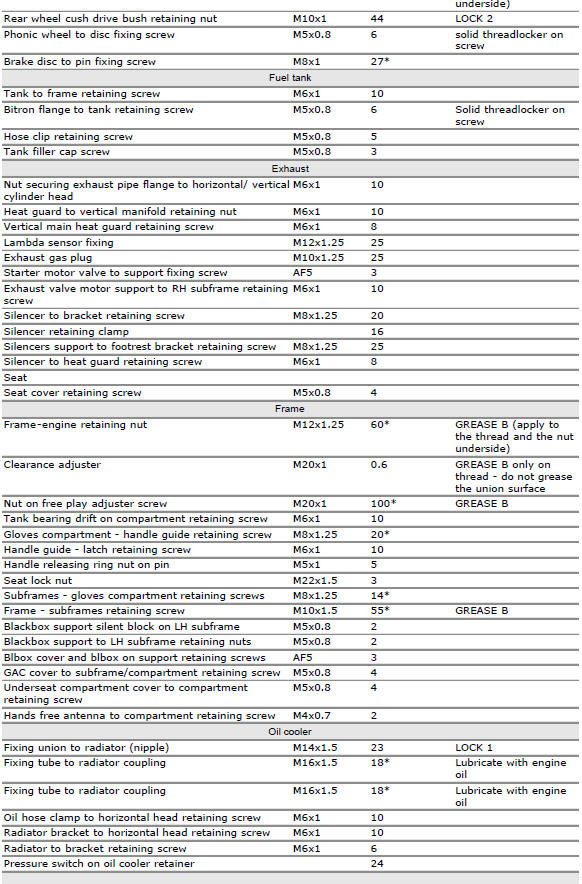

Frame torque settings


*Dynamic safety-critical point; tightening torque must be within nm +/-5%.

Note

For product specifications and symbols, refer to "product specifications" (sect. 1 - 2).

Torque settings
...

Engine torque settings
*Dynamic safety-critical point; tightening torque must be within nm +/-5%. Note For product specifications and symbols, refer to paragraph "product specifications" (sect. 1 - 2). ...

Other materials:

Adjusting the rear shock absorber
The rear shock absorber has external commands that enable you to adjust the setting to suit the load on the motorcycle. The adjuster (1, fig. 111) Located on the lower connection holding the shock absorber to the swingarm adjusts the damping during the rebound phase (return). The knob (2, f ...

Inspection of the gear selector forks
Visually inspect the gear selector forks. Bent forks must be renewed as they may lead to difficulties in gear changing or may suddenly disengage when under load. Use a feeler gauge to check the clearance of each fork in its gear groove. If the service limit has been exceeded, check whether ...

Reassembly of rear shock absorber - rocker arm - linkage assembly
Once the needle roller bearings (9) have been removed from the rocker arm (18), upon reassembly fit a new needle roller bearing (9) on drift part no. 88713.1071 And lubricate with recommended grease. Support the rocker arm and drive the needle roller bearings into the rocker arm bore until t ...
