Ducati Diavel Owners Manual: Front brake lever

Ducati Diavel Owners Manual / Controls / Front brake lever

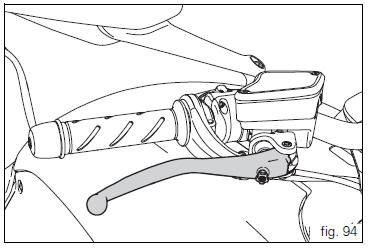

Pull the lever (1, fig. 94) Towards the twistgrip to operate the front brake. The system is hydraulically assisted and you only need to pull the lever gently.

The control lever (1, fig. 94) Features a dial adjuster (2, fig. 94) For lever distance from the twistgrip on handlebar adjustment.

The lever distance can be adjusted through 10 clicks of the dial (2, fig. 94). Turn clockwise to increase lever distance from the twistgrip. Turn the adjuster counter clockwise to decrease lever distance.

Front brake lever


Throttle twistgrip
The twistgrip (1, fig. 93) On the right handlebar opens the throttles. When released, it will spring back to the initial position (idling speed). ...

Rear brake pedal
Push down the pedal (1, fig. 95) To operate the rear brake. The system is hydraulically controlled. ...
