Ducati Diavel Service Manual: Hands free

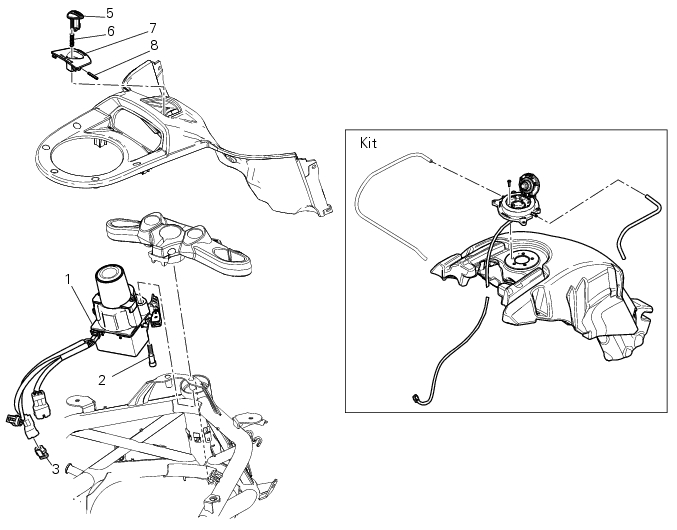

Hands free


  1. Hands free
  2. Special screw
  3. Plug
  4. Electric fuel plug
  5. Button
  6. Spring
  7. Frame
  8. Elastic pin

Spare parts catalogue

Diavel abs handlebar and controls

Diavel carbon abs handlebar and controls

Important

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.

Refitting the clutch transmission unit
Position pipe (4) on the clutch slave cylinder (r). Position the two seals (19) and tighten the screw (18) to a torque of 23 nm +/- 10% (sect. 3 - 3, Frame torque settings). Refit the bleed valv ...

Removing the hands free
Loosen the screws (2) and remove the hands free system (1) from the frame. ...
