Ducati Diavel Service Manual: Indication of range reached for service

When service coupon threshold is achieved, upon every key-on the system displays the indication of the type of intervention that is required (oil service or desmo service).

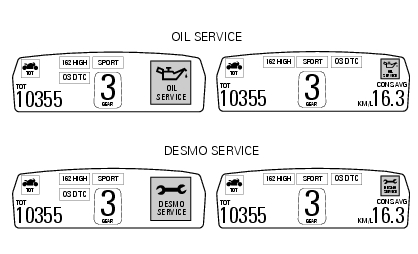

The (red) warning is activated as a large icon for 10 seconds upon every key-on (1) then as a small warning that remains displayed (2) until it is reset.

After reset, the system will display again the type of intervention required next and the residual range (as described in the previous paragraph).

Indication of range reached for service


Residual range indication when the service is due
After resetting the first oil service warning (triggered at 1000 km), upon every key-on the system displays the indication of which type of service should be performed next (oil service or desmo ...

Warning indication (alarms/signals)
The dashboard activates in real-time some warnings / malfunction that are not dangerous for the correct operation of the vehicle. At key-on (at the end of the check) one or more "warnings" are d ...
