Ducati Diavel Owners Manual: Indicator cons. Avg - average fuel consumption

Ducati Diavel Owners Manual / Instrument panel (dashboard) / Indicator cons. Avg - average fuel consumption

This function indicates the "average" fuel consumption.

The calculation is made considering the quantity of fuel used and the km travelled since the last trip 1 reset. When trip 1 is reset, the value is set to zero and the first available value is shown on the display 10 seconds after the reset. Dashes "- -.-" Are shown on the display during the first 10 seconds when the value is not yet available.

The datum is expressed in "l/100" (litres / 100 km); it is possible to change the units of measurement for "consumption" (both average and instantaneous together) from l/100 to km/l through the "set units" function of the setting menu.

The active calculation phase occurs when the engine is running and the vehicle is stopped (moments when the vehicle is not moving and the engine is off are not considered).

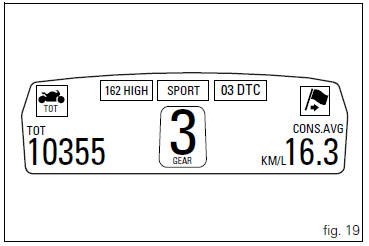

Indicator cons. Avg - average fuel consumption
