Ducati Diavel Service Manual: Indicator speed avg - average speed

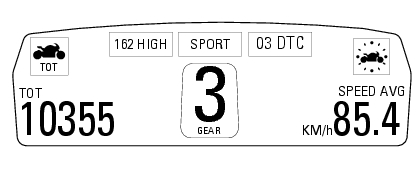

This function shows the average speed of the motorcycle.
The calculation is made considering the distance and time travelled since the last trip 1 reset. When trip 1 is reset, the value is set to zero and the first available value is shown on the display 10 seconds after the reset. Dashes "- -.-" Are shown on the display during the first 10 seconds when the value is not yet available.
The active calculation phase occurs when the engine is running and the vehicle is stopped (moments when the vehicle is not moving and the engine is off are not considered).
The calculated value is displayed increased by 5% to align it with the vehicle indicated speed.
It is possible to change the units of measurement of "speed" (and "distance travelled") from km/h (and km) to mph (and miles) through the "units of measurement modification function" function of the setting menu.
Indicator cons. - Instantaneous fuel consumption
This function indicates the "instantaneous" fuel consumption.
The calculation is made considering the quantity of fuel used and the distance
travelled during the last second. The datum
is expres ...
Indicator trip time - trip time
This function shows the vehicle trip time.
The calculation is made considering the time travelled since the last trip 1
reset. When trip 1 is reset, the value is set to
zero.
The active phase ...
