Ducati Diavel Service Manual: Indicator trip time - trip time

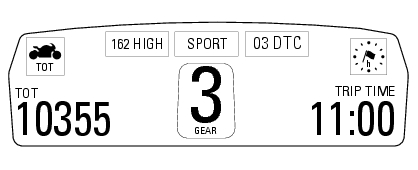

This function shows the vehicle trip time.

The calculation is made considering the time travelled since the last trip 1 reset. When trip 1 is reset, the value is set to zero.

The active phase calculation occurs when the engine is running and the vehicle is stopped (when the vehicle is not moving and the engine is off the time is automatically stopped and restarts when the counting active phase starts again).

When the reading exceeds 511:00 (511 hours and 00 minutes), the meter is reset and automatically starts counting from 0 again.

Indicator trip time - trip time


Indicator speed avg - average speed
This function shows the average speed of the motorcycle. The calculation is made considering the distance and time travelled since the last trip 1 reset. When trip 1 is reset, the value is set t ...

Indicator air - air temperature
This function shows the external temperature. Display limits: -39C - +124C In the event of a sensor fault (-40C, +125C or disconnected), a string of dashes "- - -" (not flashing) is displayed an ...

Other materials:

Key-on/key-off using the red key on the handlebar with the passive key
A key-on can be performed by pressing the red button (6) on the handlebar in the hands free on/off position and in the presence of the passive key (4, fig. 77). Note The passive key (4, fig. 77) Has a range of a few cm, therefore the key (4, fig. 77) Must be positioned near the antenna (2). R ...

Exhaust by-pass valve not working correctly
Fault codes Dds: exvl diagnosis -> position error, potentiometer, short circuit to ground or open circuit (s.C. Gnd or c.O.), Potentiometer short circuited to vdc (potentiometer s.C vdc). Dashboard: the error "exvl" (exhaust bypass valve) is shown on the service display. The eobd warning ...

Dashboard system
The vehicle is equipped with two dashboards: an lcd (1) located on the handlebar containing the key indications (speed, rpm, engine coolant temperature, and clock) and a tft colour display (2) located in the tank fairing displaying trip information (riding style set, odometer, consumption, ave ...
