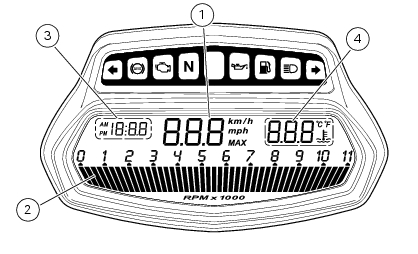

Ducati Diavel Service Manual: Lcd unit functions

  1. Speedometer.

    Gives road speed

  2. Rev counter.

    Indicates engine revs per minute.

  3. Clock.
  4. Water temperature indicator.

    Indicates engine coolant temperature.

Important

Stop riding if the temperature reaches the maximum value, otherwise the engine might be damaged.
