Ducati Diavel Owners Manual: Overall dimensions (mm)

Ducati Diavel Owners Manual / Technical data / Overall dimensions (mm)

Weights

Weight in running order without fluids and battery: 210 kg.

Carrying full load: 400 kg.

Warning


failure to observe weight limits could result in poor handling and impair the performance of your motorcycle, and you may lose control of the vehicle.

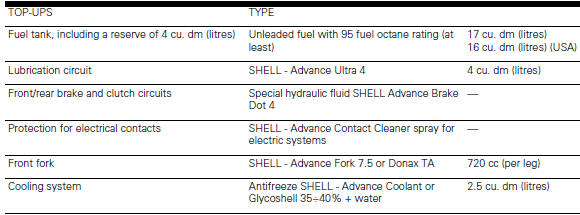

Overall dimensions (mm)


Overall dimensions (mm)


Important


Do not use additives in fuel or lubricants.

Technical data
...

Engine
Twin cylinder, four-stroke, 90 "l" type, longitudinal, with deep sump die-cast crankcase. Bore, mm: 106 Stroke, mm: 67.9 Total displacement, cu. Cm: 1198 Compression ratio: 11.5В±0 ...

Other materials:

Reassembly of the control unit
Insert the control unit (4) into the protecting sheath (5) and position it on the airbox. Position the relay supporting bracket (2) by starting and tightening the screws (1) to a torque of 6 nm +/- 10% (sect. 3 - 3, Frame torque settings), and connect the control unit connectors (3). ...

Overhaul of the flywheel-alternator assembly
Examine the inner part of alternator rotor (24) for signs of damage. Check that the starter clutch is working properly and that the needle races do not show signs of wear or damage of any kind. If there is any malfunction, remove the whole assembly. Disassembling the generator flywheel U ...

Refitting the rear wheel eccentric hub and rear wheel shaft
Refitting is the reverse of removal, with attention to the following points. If the calliper bracket locating pin (14) was removed, apply the recommended threadlocker on reassembly. Tighten the pin (14) to the torque of 33 nm +/- 5% (sect. 3 - 3, Frame torque settings). If previously ...
