Ducati Diavel Owners Manual: Passenger grabhandle

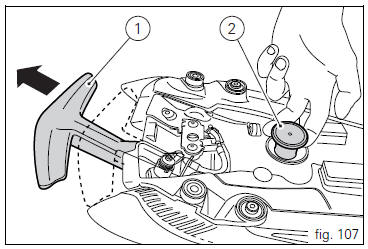

Passenger grabhandle (1, fig. 107) Is located inside the tail guard; to take it out, remove the seat (see "removal of the seat" on page 119), pull the knob (2, fig. 107) While taking out the grabhandle (1, fig. 107) From its housing until it is fully extended.

Warning


Before use, pull back and forth to ensure that it is locked in the correct position.

To withdraw it, pull knob (2, fig. 107), Push grabhandle (1, fig.

107) In its housing until it is completely flush with the tail guard (fig. 108) And refit the seat (see "refitting the seat" on page 121).

Passenger grabhandle


Passenger grabhandle


Side stand
Important Before lowering the side stand, check that the ground is sufficiently even and firm. Do not park on soft or pebbled ground or on asphalt melted by the sun heat and similar or the motorc ...

Adjusting the front fork
The front fork used on this motorcycle has rebound, compression and spring preload adjustment. The settings are adjusted using external adjuster screws. To adjust rebound damping (fig. 109); ...

Other materials:

Low battery level
The activation of this (amber yellow) "warning" indicates that the status of the battery vehicle is low. It is activated when the battery voltage is . 11.0 Volt. Note In this case, ducati recommends charging the battery as soon as possible with the specific device, as it is possibl ...

Check the engine oil pressure
Note The on-screen icons used during this procedure are explained in a table at the end of this section. To measure the pressure of the lubrication circuit, use the engine oil pressure test point (19) as described below. Disconnect the wiring connector (f) of pressure switch (1) and rem ...

Reassembly of the gearbox
To refit the gearbox components follow the procedure under sect. 9 - 9.2, Reassembly of the crankcase halves, relating to reassembly of the engine crankcase. As a final practical test, ensure that with the gearbox in neutral the front coupling dogs (a) of sliding gears (b) are equidistant o ...
