Ducati Diavel Service Manual: Pin code change function

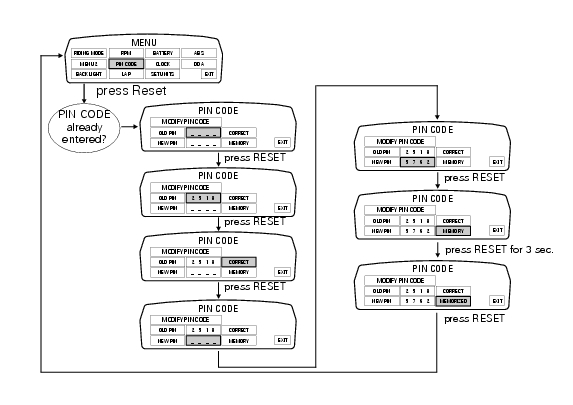

This function changes your four number pin code.

To access the function it is necessary to view the "setting"menu, using buttons (1) "s" or (2) "t" to select the "pin code" function and press the reset button (3) to enter the following page.

Note

If "insert new pin code" and the dashes "- - - -" appear when accessing this function, this means that the function was not active as the pin code was never entered. Enter your pin as described in the previous paragraph "pin code activation function".

When accessing the function, "modify pin code", "old pin" with four dashes "- - - -" in the bottom line will appear on the display highlighted in green; now enter the 4 digit code.

Note

To change the pin, you must know the currently stored pin.

Now you shall enter the "old" pin code (old pin).

Press the reset button (3); pressing button (2) "t" repeatedly cycles the highlighted number from "0" to "9" and then back to "0"; to confirm the number, press the reset button (3); repeat the procedure until inserting the fourth digit; press the reset button (3) again to confirm.

If the entered code is incorrect, the dashboard will return to the four dashes " - - - - " in order to enter the code again.

If the entered code is correct, "correct" is automatically highlighted in green for about 2 seconds and then the four dashes

" - - - - " Next to "new pin" indication are automatically highlighted; now enter the "new" 4 digit code.

Press the reset button (3); pressing button (2) "t" repeatedly cycles the highlighted number from "0" to "9" and then back to "0"; to confirm the number, press the reset button (3); repeat the procedure until inserting the fourth digit; press the reset button (3) again to confirm.

Item "memory" is automatically highlighted.

To store the entered new pin, press the reset button (3) for 3 seconds with "memory" indication highlighted in green.

As a confirmation of the new pin storage, the display will show message "memorized" for about 2 seconds and then "exit" is automatically highlighted.

To exit the setting function, press the reset button (3) when "exit" is highlighted.

Note

There is no limit to the amount of times you can change your pin code.
