Ducati Diavel Service Manual: Refitting the evaporative emissions canister

Ducati Diavel Service Manual / Fuel/exhaust system / Evaporative emissions canister / Refitting the evaporative emissions canister

To refit, carry out the removal operations in reverse order, making sure to locate the hoses as shown in the figures at the end of the chapter.

Refitting the evaporative emissions canister

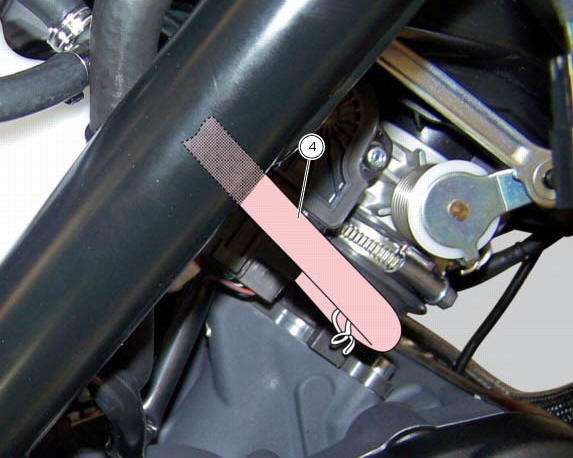

Positioning the hoses / clamps and canister filter

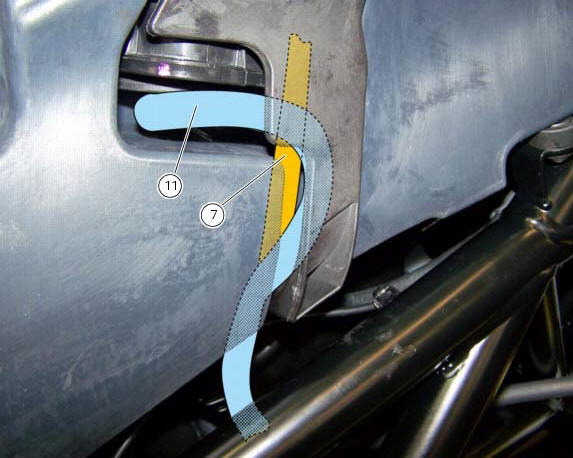

Positioning the hoses / clamps and canister filter

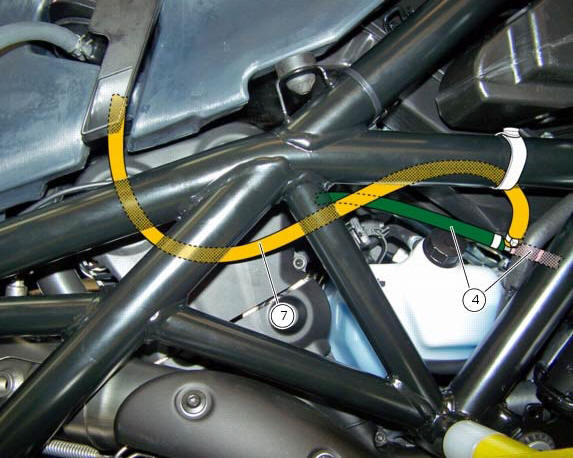

Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Positioning the hoses / clamps and canister filter


Removal of the evaporative emissions canister
Loosen the screws (9) securing the plate (8) to the tank. Slightly pull the plate (8) with the canister (13), remove the clamps (3) and (12) and connect hoses (7) and (14). Release the ...
