Ducati Diavel Owners Manual: Refitting the seat

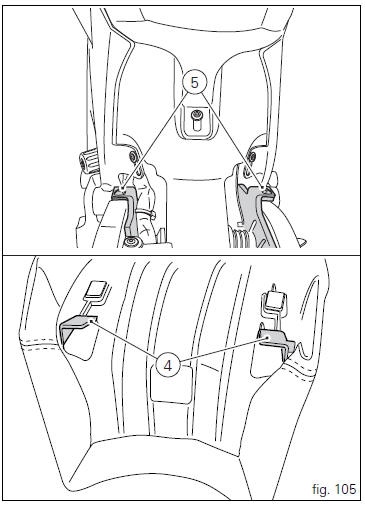

Make sure all parts are correctly arranged and secured in the underseat compartment. Insert the mounts (4) of the seat base in the projecting parts (5) of the frame, then push the rear end of the seat until you hear the bolt in the lock click into place. Make sure that the seat is firmly secured to the frame and remove the key from the lock.

Refitting the seat


Helmet cable
Note Helmet cable (2, fig. 104) Can be found inside the tool kit, see "tool kit and accessories" on page 141. Pass the cable through the helmet and insert the end of the cable in the pi ...

Side stand
Important Before lowering the side stand, check that the ground is sufficiently even and firm. Do not park on soft or pebbled ground or on asphalt melted by the sun heat and similar or the motorc ...

Other materials:

Removal of the front mudguard
Undo the screw (7) and remove the front brake lines (a) from the hose grommet (4). Undo and remove the special retaining screws (5): keep the spacers (6). Remove the front mudguard (1). Warning The version provided with carbon mudguards features nylon washers instead of the spacers (6) ...

Inspection of the gear selector forks
Visually inspect the gear selector forks. Bent forks must be renewed as they may lead to difficulties in gear changing or may suddenly disengage when under load. Use a feeler gauge to check the clearance of each fork in its gear groove. If the service limit has been exceeded, check whether ...

Horn not working
Fault codes Dds: horn diagnosis -> short circuit to ground (s.C. Gnd). Dashboard: the error "claxon" (horn) is shown on the service display. The eobd warning light activates. Wiring diagram Db dashboard connection, s horn button. 5 Blue/white - b/w, 1 red/blue - r/b, db 19 purple/bl ...
