Ducati Diavel Owners Manual: Refuelling

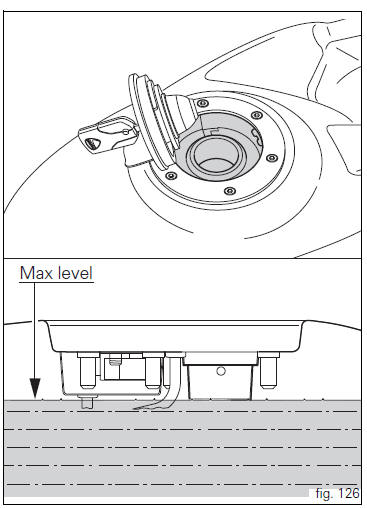

Never overfill the tank when refuelling. The fuel level should always be below the rim of the filler recess.

Warning


Use low-lead fuel with 95 octane rating at origin minimum (see "top-ups" table, page 173).

Check that no fuel is trapped in the filler cap recess.

Refuelling
