Ducati Diavel Service Manual: Removal of the crankshaft/connecting rods assembly

Ducati Diavel Service Manual / Engine / Crankcase assembly / Crankshaft/connecting rods assembly / Removal of the crankshaft/connecting rods assembly

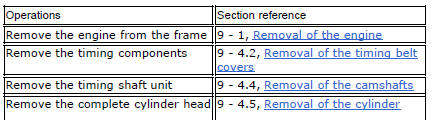

Removal of the crankshaft/connecting rods assembly


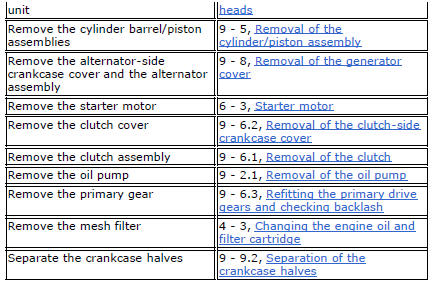

Removal of the crankshaft/connecting rods assembly


After separating the crankcase halves, withdraw the crankshaft (6) complete with connecting rods (2).

Removal of the crankshaft/connecting rods assembly


Crankshaft/connecting rods assembly
Special screw Connecting rod assembly Half bearing Grub screw Bushes Crankshaft Grub screw Shim washer Spare parts catalogue Diavel abs connecting rods Diavel carbon abs co ...

Disassembly of the crankshaft/connecting rods assembly
Unscrew the screws (1) and separate the connecting rods from the crankshaft. Important Take care not to mix up components of different connecting rods and maintain the original orientation. ...
