Ducati Diavel Service Manual: Removal of the front forks

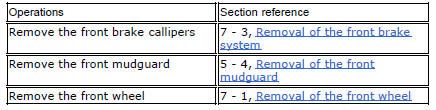

Before removing the front forks, it is first necessary to remove the following parts:


Loosen the clamp screws (1) holding the fork legs to the steering head (3).

Loosen the clamp screws (2) and (26) securing the fork legs to the bottom yoke (4).

Withdraw the fork legs (5) and (6) downwards in order to carry out to all the necessary overhaul operations.

Removal of the front forks


Steering head: front fork
Screw Screw Steering head Bottom yoke Left fork leg assembly Right fork leg assembly Counter nut Damper assembly Bush Spring Preload tube Collar Washer Top cap assembl ...

Overhauling the front forks
Note It is advisable to loosen the top cap (14) when the fork is still fitted to the motorcycle. Note The specific tools for the revision of the fork, are described in sect. 3 - 4, Specific too ...
