Ducati Diavel Service Manual: Removing the hands free

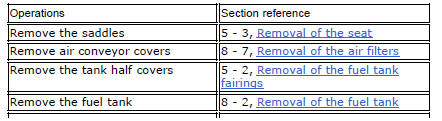

Removing the hands freeRemoving the hands free


Loosen the screws (2) and remove the hands free system (1) from the frame.

Removing the hands free


Hands free
Hands free Special screw Plug Electric fuel plug Button Spring Frame Elastic pin Spare parts catalogue Diavel abs handlebar and controls Diavel carbon abs handlebar and con ...

Refitting the hands free
Reassembly is a reversal of the removal procedure: in particular apply prescribed threadlocker to screws (2) and tighten them to a torque of 20 nm +/- 10% (sect. 3 - 3, Frame torque settings). I ...
