Ducati Diavel Service Manual: Replacing of the rear sprocket

Ducati Diavel Service Manual / Chassis / Final drive / Replacing of the rear sprocket

Replacing of the rear sprocket


Lock the wheel axle rotation.

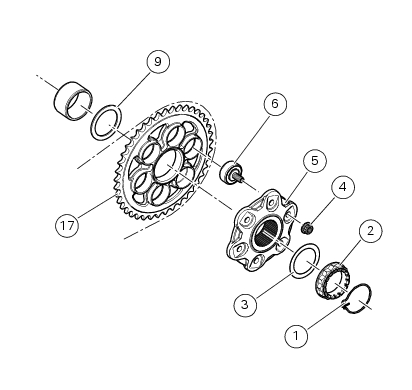

Remove the clip (1).

Loosen the locking nut (2) with a socket wrench.

Fully unscrew the nut (2) and remove the washer (3) and the flange (5) with the sprocket (17).

Collect the spacer (9).

Using a mallet, tap the flange (5) with the cush drive damper (6) off the sprocket (17).

Replacing of the rear sprocket


Replacing of the rear sprocket


Refitting the front sprocket
Grease the o-ring (16) and install it on the front sprocket spacer (15). Fit the spacer, from the o-ring side, on the secondary shaft and drive it fully home against the inner ring of the bearing ...

Refitting the rear sprocket
Check the cush drive bushes (6) condition and, if necessary, replace them by removing them from the flange. Refitting is the reverse of removal. Apply recommended grease on the rear sprocket f ...
