Ducati Diavel Owners Manual: Rh switch

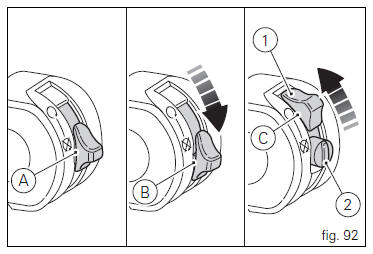

  1. Red on/off switch.
  2. Black engine start button.

The switch (1) has three positions:

  1. Centre: run off. In this position, the engine cannot be started and all electronic devices are off.

  2. Pushed down: on/off. In this position, the system can be turned on (key-on) and off (key-off).
  3. Pushed up: run on. The engine can only be started in this position, pushing the black button (2).

Rh switch


Rh switch


Clutch lever
Lever (1) disengages the clutch. It features a dial adjuster (2) for lever distance from the twistgrip on handlebar. The lever distance can be adjusted through 10 clicks of the dial (2). Turn clo ...

Throttle twistgrip
The twistgrip (1, fig. 93) On the right handlebar opens the throttles. When released, it will spring back to the initial position (idling speed). ...
