Ducati Diavel Owners Manual: Steering in position for being locked indication

Ducati Diavel Owners Manual / Instrument panel (dashboard) / Light control / Steering in position for being locked indication

This function informs that the steering is in position for turning on the steering lock.

The sensors detect that the steering is in position during the first 60 seconds after turning off the vehicle and the instrument panel activates the indication on the display for max. 5 Consecutive seconds.

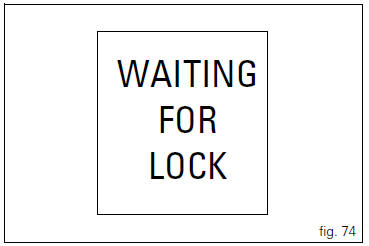

Steering in position for being locked indication
