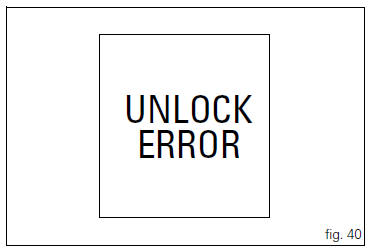

Ducati Diavel Owners Manual: Steering release error - steering still locked
The activation of this (amber yellow) "warning" indicates that the hands free system was not able to extract the steering lock.
Warning
In this case, ducati recommends turning the vehicle off and on (key-off / key-on) holding the handlebar pressed down to the end stop. If the signal remains (and the steering does not "release") contact a ducati dealer or authorised service centre.
High engine coolant temperature
The activation of this (amber yellow) "warning" indicates
that the engine coolant temperature is high.
It is activated when the temperature reaches 121C (250f).
Note
In this case, duca ...
Instrument panel diagnosis
This function identifies any abnormal vehicle behaviours.
The instrument panel activates any abnormal vehicle
behaviours in real time (errors).
At key-on (at the end of the check) one or more & ...
