Ducati Diavel Service Manual: Stored lap display function

This function displays the stored laps.

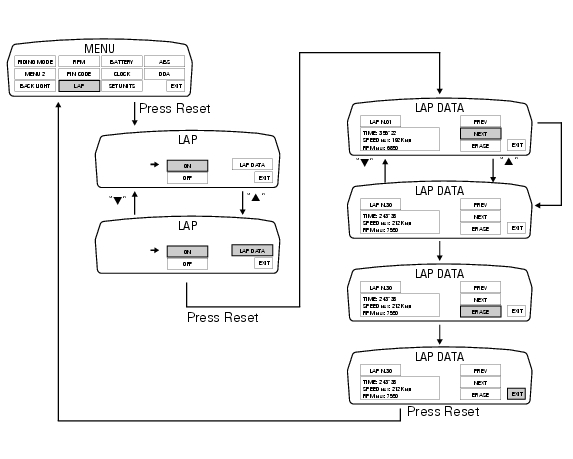

To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "lap" function and press the reset button (3) to enter the following page.

Use button (1) "s" or (2) "t" to select "lap data" indication and press the reset button again (3) to enter the page showing the previously recorded lap times.

The dashboard displays the information as follows: at top left, the number of the displayed lap (ex.: Lap n.01); At bottom left, a rectangle inside which is the lap time (time), top speed in that lap (speed max) and top rpm in the same lap (rpm max); on the right, use button (1) "s" or (2) "t" to select "next" (so that every time the reset button is pressed (3) the next lap is displayed) or "prev" (so that every time the reset button is pressed (3) the previous lap is displayed); to exit, select "exit" and press the reset button (3).

Note

The max stored speed is indicated on the display (increased by 5%).

If no lap times are saved in memory, "no lap" indication is displayed and lap timer will indicate "-.- -.- -", Max rpm will be = - - - - - - and max speed = - - - - -.

Note

If the stored times are deleted while the lap function is active, it will be automatically deactivated.
