Ducati Diavel Owners Manual: Stored lap display function

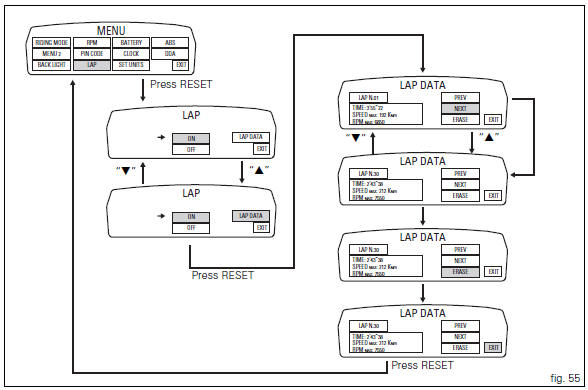

This function displays the stored laps.

To access the function it is necessary to view the "setting" menu page 48, using button (1, fig. 14) ?"" or (2, fig.
14) ?" " select the "lap" function and
press the reset button (12, fig. 12) To go to next page.

Use button (1, fig. 14) ?"" or (2,
fig. 14) ?" " to select "lap
data" indication and press the reset button again (12, fig.

12) To enter the page showing the previously recorded lap times.

The instrument panel displays the information as follows:

To exit, select "exit" and press the reset button (12, fig. 12).

Note


The max stored speed is indicated on the display (increased by 5%).

If no lap times are saved in memory, "no lap" indication is displayed and lap timer will indicate "-.- -.- -", Max rpm will be = - - - - - - and max speed = - - - - -.

Note


If the stored times are deleted while the lap function is active, it will be automatically deactivated.
