Ducati Diavel Service Manual: Stored lap erase function

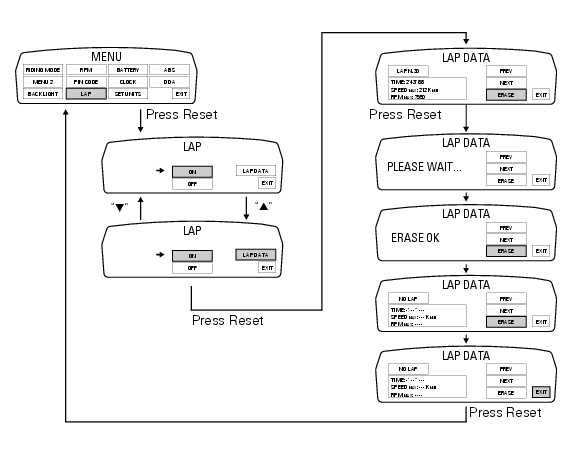

This function erases the stored laps.
To access the function it is necessary to view the "setting" menu", using buttons (1) "s" or (2) "t" select the "lap" function and press the reset button (3) to enter the following page.
Use button (1) "s" or (2) "t" to select "lap data" indication and press the reset button again (3) to enter the page showing the previously recorded lap times.
Highlight the "erase" item, use button (1) "s" or (2) "t" to scroll through the stored laps to erase and press the reset button (3) for 3 seconds. Now, on the left-hand side of the display you have "please wait…" and then, to confirm deletion, "erase ok" appears for 2 seconds.
You will notice that no stored data will be present any more and "no lap" message will be displayed.
To exit, select "exit" and press the reset button (3).
