Ducati Diavel Owners Manual: Throttle twistgrip

Ducati Diavel Owners Manual / Controls / Throttle twistgrip

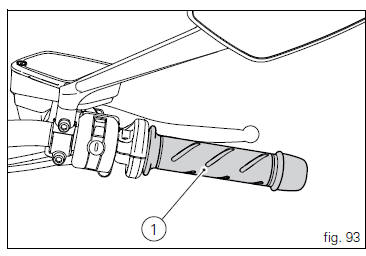

The twistgrip (1, fig. 93) On the right handlebar opens the throttles. When released, it will spring back to the initial position (idling speed).

Throttle twistgrip


Rh switch
Red on/off switch. Black engine start button. The switch (1) has three positions: Centre: run off. In this position, the engine cannot be started and all electronic devices are off. Pu ...

Front brake lever
Pull the lever (1, fig. 94) Towards the twistgrip to operate the front brake. The system is hydraulically assisted and you only need to pull the lever gently. The control lever (1, fig. 94) Featu ...
