Ducati Diavel Owners Manual: Tool kit and accessories

Ducati Diavel Owners Manual / Directions for use / Tool kit and accessories

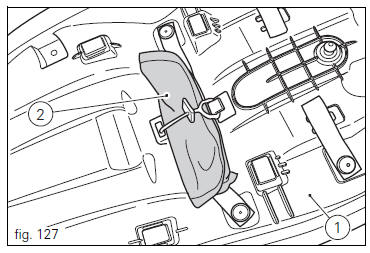

The tool kit (2) is located under the seat (1) while the owner’s manual is housed in the compartment under the seat.

The tool kit includes:

To access the underseat compartment, remove the seat (see "removal of the seat" on page 119).

Tool kit and accessories


Refuelling
Never overfill the tank when refuelling. The fuel level should always be below the rim of the filler recess. Warning Use low-lead fuel with 95 octane rating at origin minimum (see "top-ups&q ...

Main maintenance operations
...
