Ducati Diavel Owners Manual: Vehicle speed indicator

this function displays vehicle speed (km/h or mph depending on the set measurement system).

the instrument panel receives information about the actual speed and displays the number increased by 5%.

maximum speed displayed is 299 km/h (186 mph).

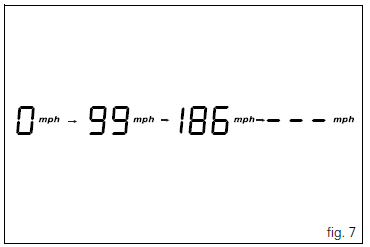

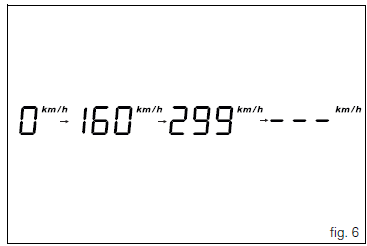

over 299 km/h (186 mph) a series of dashes will be displayed "- - -" (not flashing).

Vehicle speed indicator


Vehicle speed indicator


Lcd unit functions
Speedometer. Gives road speed. Rev counter. Indicates engine revs per minute. Clock. Water temperature indicator. Indicates engine coolant temperature. Important Stop riding i ...

Engine rpm indicator (rpm)
This function displays the rpms. The instrument panel receives the engine rpm information and displays it. This information is displayed progressively from the left to the right, identifying t ...
