Ducati Diavel Service Manual: Wiring diagram colour codes

B blue

Bk black

Bn brown

G green

Gr grey

Lb light blue

O orange

P pink

R red

V violet

W white

Y yellow

Wiring diagram colour codes

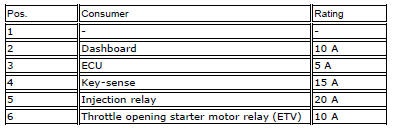

Rear left fuse box (1) key

Rear left fuse box (1) key

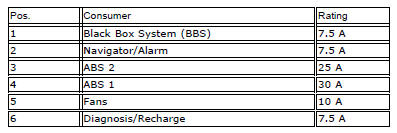

Rear right fuse box (2) key

Rear right fuse box (2) key


Key to wiring diagram
Right-hand handlebar switch Immobilizer Hands free relay Hands free Front fuse box Right fan Left fan Fan relay Fuel pump relay Ride-by-wire relay (etv) Injection control unit ( ...

Routing of wiring on frame
The routing of the wiring has been optimised to ensure the minimum obstruction. Each section is designed to prevent interference with parts that might damage wires or cause operating failures w ...
