Ducati Diavel Service Manual: Disassembly of the seat

Ducati Diavel Service Manual / Fairings / Seat / Disassembly of the seat

Remove the seat and turn it upside down.

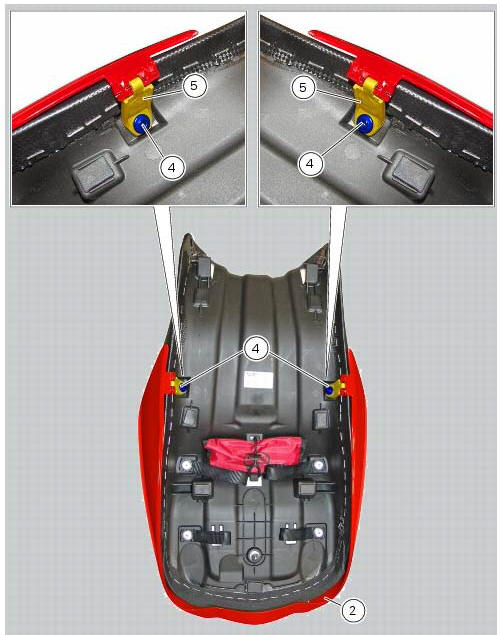

Loosen the special screws (4), turn the plates (5) and open the seat cover (2) lateral sides to slide it out.

Disassembly of the seat


Removal of the seat
Insert the key in the lock, turn it clockwise and release the seat. Pull the seat (1) backwards to release it from the front catches and remove it. ...

Reassembly of the seat
Place the seat cover (2) on the seat and fix it (on the lower side) by starting screws (4) on plates (5). Tighten the screws (4) to a torque of 4 nm +/- 10% (sect. 3 - 3, Frame torque settings) ...
