Ducati Diavel Owners Manual: Traction control (dtc) deactivated

Ducati Diavel Owners Manual / Instrument panel (dashboard) / Traction control (dtc) deactivated

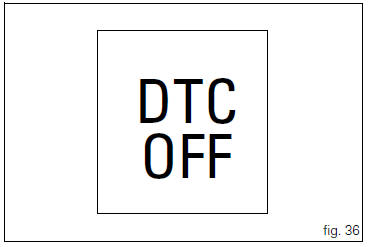

The activation of this (amber yellow) "warning" indicates that dtc (ducati traction control) has been turned off.

Note


In this case, ducati recommends being very careful when riding as the vehicle behaviour will be different in comparison to when operating with the traction control activated.

Traction control (dtc) deactivated


Low battery level
The activation of this (amber yellow) "warning" indicates that the status of the battery vehicle is low. It is activated when the battery voltage is . 11.0 Volt. Note In this case, du ...

Hands free key (hf) not recognised
The activation of this (amber yellow) "warning" indicates that the hands free system does not detect the active key (1, fig. 62) Near the vehicle. Note In this case, ducati recommends c ...
