Ducati Diavel Service Manual: Frame torque settings

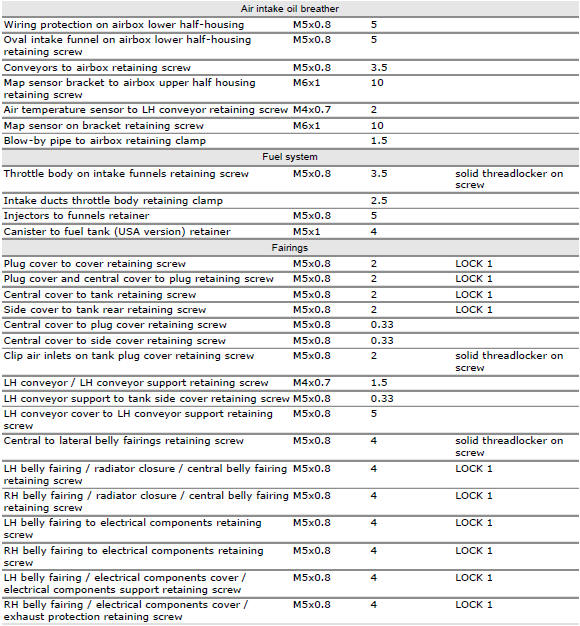

Frame torque settings


Frame torque settings


Frame torque settings


Frame torque settings


Frame torque settings


*Dynamic safety-critical point; tightening torque must be within nm +/-5%.

Note

For product specifications and symbols, refer to "product specifications" (sect. 1 - 2).

Torque settings
...

Engine torque settings
*Dynamic safety-critical point; tightening torque must be within nm +/-5%. Note For product specifications and symbols, refer to paragraph "product specifications" (sect. 1 - 2). ...
