Ducati Diavel Service Manual: Menu 2 on/off function

This function turns off and back on the menu 2.

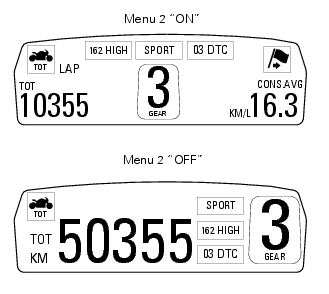

If menu 2 is disabled, the functions for average fuel consumption (cons.Avg), instantaneous fuel consumption (cons.), Average speed (speed avg), trip time (trip time) and air temperature (air) will no longer be displayed in the "main screen". Nevertheless, all these functions will keep on their counters so that when menu 2 is re-enabled data will be updated and consistent.

Menu 2 on/off function


To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "menu 2" function and press the reset button (3) to enter the following page.

Function state is highlighted on the display (on in green or off in yellow); use button (1) "s" or (2) "t" to shift the arrow to the left onto the new setting and confirm by pressing the reset button (3).

To exit the setting function, press the reset button (3) when "exit" is highlighted.

Menu 2 on/off function


Default function (resetting ducati default parameters)
This function resets the parameters set by ducati for each riding style. To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "riding ...

Background setting function for the dashboard on tank - dashboard 1
This function allows setting the "background" of the dashboard on tank. To access the function it is necessary to view the ""setting" menu", using buttons (1) "s" or (2) "t" select the "back lig ...
