Ducati Diavel Owners Manual: Gear change pedal

Ducati Diavel Owners Manual / Controls / Gear change pedal

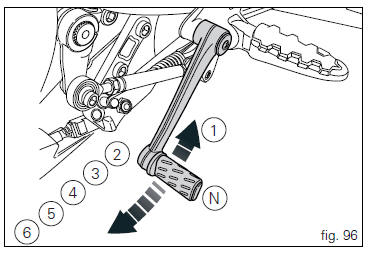

When released, the gear change pedal (1, fig. 96) Automatically returns to rest position n in the centre. This is indicated by the instrument panel light n (2, fig. 4) Coming on.

The pedal can be moved: down = press down the pedal to engage the 1st gear and to shift down. At this point the n light on the instrument panel will go off; upwards= lift the pedal to engage 2nd gear and then 3rd, 4th, 5th and 6th gears.

Each time you move the pedal you will engage the next gear.

Gear change pedal


Rear brake pedal
Push down the pedal (1, fig. 95) To operate the rear brake. The system is hydraulically controlled. ...

Adjusting the position of the gearchange and rear brake pedals
The position of the gearchange and rear brake pedals in relation to the footrests can be adjusted to suit the requirements of the rider. Adjust the pedals as follows: Gear change pedal (fig. 97) ...
