Ducati Diavel Owners Manual: High engine coolant temperature

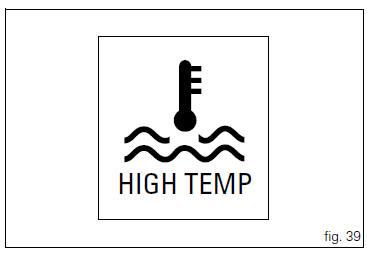

The activation of this (amber yellow) "warning" indicates that the engine coolant temperature is high.
It is activated when the temperature reaches 121C (250f).
Note
In this case, ducati recommends stopping and shutting off the engine immediately; make sure that the fans are working.
Low hands free key (hf) battery level
The activation of this (amber yellow) "warning" indicates
that the hands free system has detected that the battery
that permits the active key (1, fig. 62) To communicate and
turn the veh ...
Steering release error - steering still locked
The activation of this (amber yellow) "warning" indicates
that the hands free system was not able to extract the
steering lock.
Warning
In this case, ducati recommends turning the vehic ...
